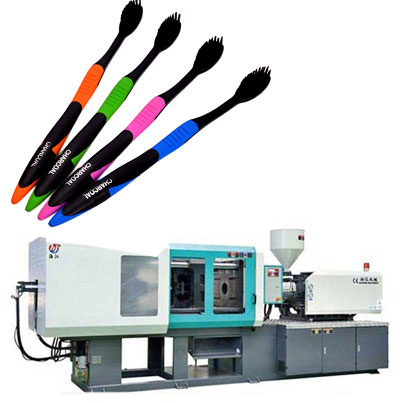

Plastic Injection Molding Machine
I Description:
This machine is used for making toothbrush handles with one color.
II Main technical data
|
Model |
Unit |
HJV-400 |
|
|
Injection system
|
Screw diameter |
mm |
35 |
|
Injection pressure |
kg/cm |
1209 |
|
|
Max. shot weight(PS) |
g |
112 |
|
|
Max. shot weight(PS) |
OZ |
3.9 |
|
|
Injection rate |
cm3/sec |
173 |
|
|
Number of temperature control |
- |
4 |
|
|
Material hopper capacity |
L |
15 |
|
|
clamping system |
Clamping force |
tons |
40 |
|
Mold opening force |
tons |
8.3 |
|
|
Upper plate size |
mm |
530 x 380 |
|
|
Lower plate size |
|
580 x 430 |
|
|
Distance between the die-bar |
mm |
400 x 250 |
|
|
Min. mold height |
mm |
160/220 |
|
|
Opening stroke |
mm |
180 |
|
|
Max. opening daylight |
mm |
320/380 |
|
|
Ejector force |
tons |
1.1 |
|
|
Ejector stroke |
mm |
39 |
|
|
Hydraulic and power system |
Max. hydraulic pressure |
kg/cm2 |
140 |
|
Oil reservoir capacity |
L |
130 |
|
|
Cooling water consumption |
L/h |
400-600 |
|
|
Pump motor power |
kW |
5.5 |
|
|
Barrel heating power |
kW |
3.5 |
|
|
Total power |
kW |
9 |
|
|
Others |
Machine weight |
tons |
1.2 |
|
Machine dimension (L×W×H) |
m |
1.7×1.1×2.3 |
|

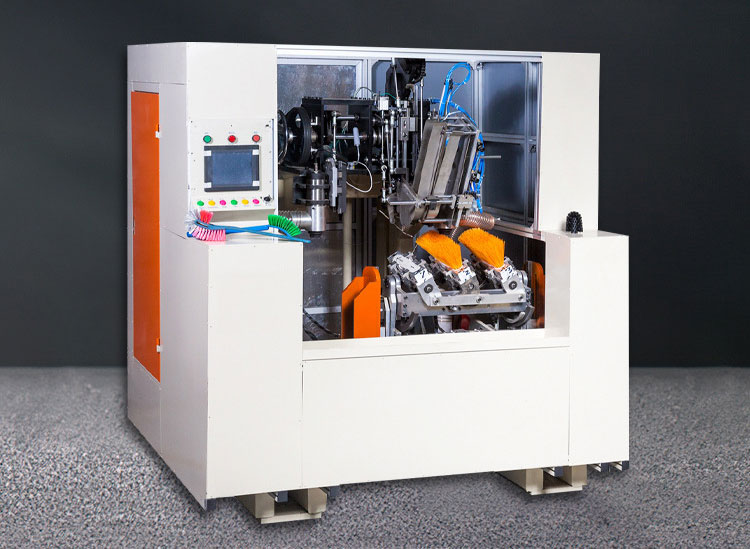

High Speed Toothbrush Hair Tufting Machine
I Description:
This machine is used for tufting toothbrush hair.
II Main technical data
|
Name |
Data |
|
Voltage |
220V, single phage, 50Hz. |
|
Brake motors |
0.37kW |
|
Transducer |
750W |
|
Rotate speed |
750-800rpm |
|
Suitable color number |
2 colors |
|
Servo motor power |
0.4kW x 4 |
|
Machine dimension |
1150 x 1050 x 1350mm |
|
Machine weight |
610kg |
Toothbrush hair grinding machine
I Description:
This machine is used for grinding toothbrush hair to be radian.
II Main technical data
|
Parts name |
Voltage |
Power |
Quantity |
|
Cleaner |
380V, 3phase, 50Hz. |
3kW |
1 |
|
Rotation Motor |
380V, 3phase, 50Hz. |
0.75kW |
1 |
|
Turning motor |
380V, 3phase, 50Hz. |
0.75kW |
1 |
|
Cutting hair motor |
220V, single phase, 50Hz. |
0.25kW |
2 |
|
Grinding dish motor |
220V, single phase, 50Hz. |
0.09kW |
6 |
|
Grinding speed |
32pcs/min |
|
|

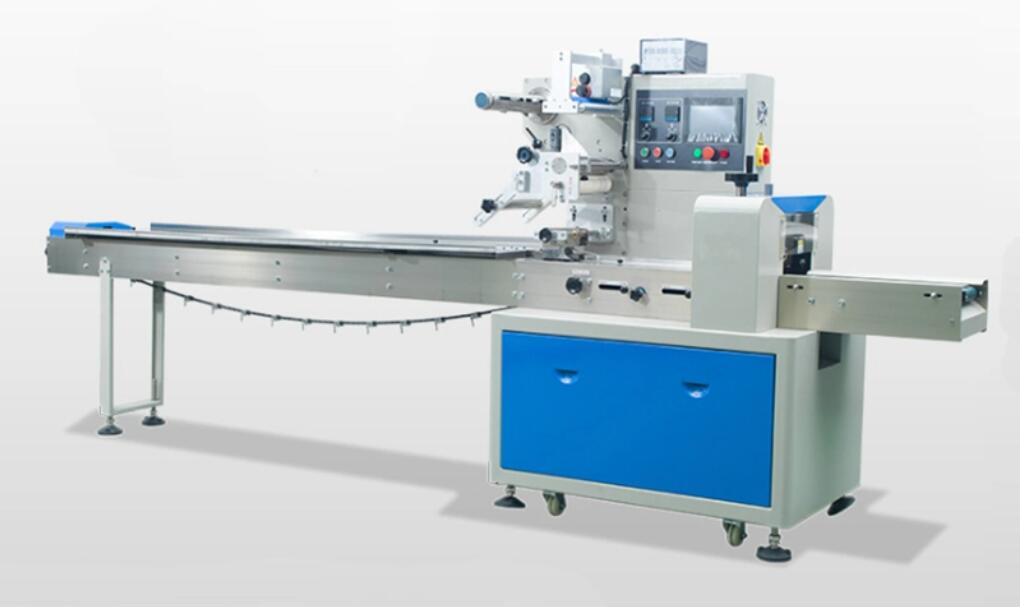

Automatic Toothbrush Packing Machine
I Description:
This machine is used for packing toothbrush, battery, food, toy and some paper plastics types.
Process: PVC uncoiling- PVC heating- Plastic bracket forming- servo traction- toothbrush feeding- paper card feeding automatic- heat conglutinating- plastic bracket cutting- PVC waste coiling- finishing
II Feature
1- Toothbrush feeding is manual. If need feeding automatic, we can design according to requirements.
2- Mechanical drive, servo traction, reasonable structure- simple operation.
3- 304 stainless steel cover, easy cleaning.
4- PLC control system, frequency control, low noise and stable running
5- Photoelectric control, automatic detection, operation safety.
6- Paper card feeding automatic.
7- Separate design, easy to disassemble
III Main technical data
|
Model |
HJ-270 |
|
Max. size of paperboard |
260 x 170mm( custom-made) |
|
Max. size of PVC |
280 x 0.25mm( custom-made) |
|
Plastic bracket cutting speed |
8-25 pcs/min |
|
Stroke |
30-180mm |
|
Air pressure |
0.5-0.8MPa |
|
Air mass flow |
≥0.6m³/min |
|
Total power |
8kW, 380V, 3phase, 5Hz. |
|
Main motor power |
1.5kW |
|
Machine dimension |
3500 x 700 x 1700mm |
|
Machine weight |
1800kg |
|
Video link |
https://youtu.be |
