Plastic bottle making machine PET water bottle blowing machine

  • Full automatic blow molding shaping machine can produce PET containers including the bottles for kinds of wine, drink, soybean, vinegar, and pesticide (less than 20liters) according to the different bottle shape and diameter. It has automobile system with high efficiency. The distant infrared ray heat pipe are used in the machine, It has high pressure protection with the feature of precisely removing mould, The machine has no noise It is easy to maintain It's the equipment for producing PET bottles.

Plastic bottle making machine PET water bottle blowing machine

PET bottle production line

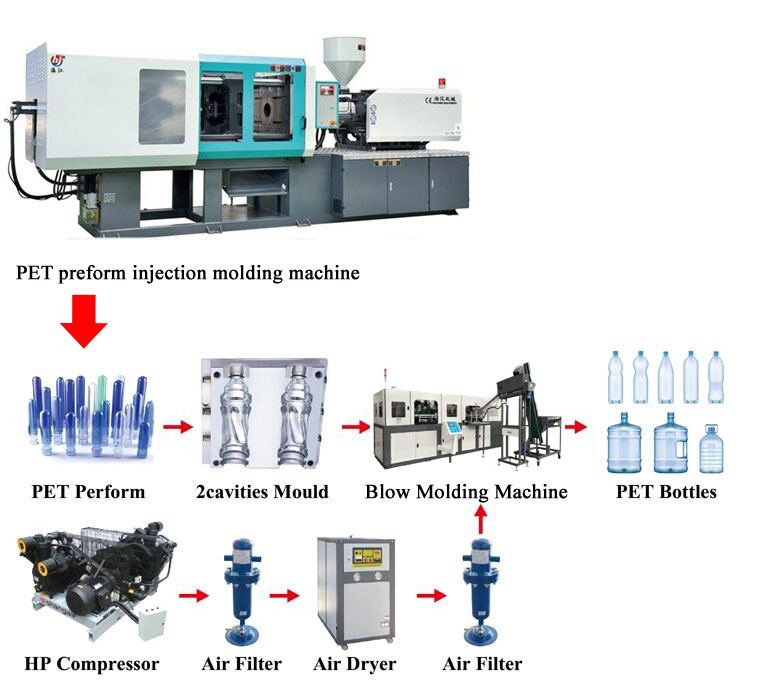

Total step: PET bottle injection molding machine making PET preform. Blow molding machine make bottle. There are two kinds of molds:PET preform mold and blow molds.

HJ-600 automatic blowing molding machine
CE approval
Speed: 2500pcs/h for 500ml pet bottle

Plastic bottle machine Main technical parameter:

Model Item HC-600-4 HC-600 HC-600-6
Productivity Depend on bottle design 1800-2700pcs/h 3200-4000pcs/h 4000-5500pcs/h
Bottle specification Volume 0.1-2.0L 0.1-2.0L 0.1-2.0L
Body diameter ≤100mm ≤100mm ≤100mm
Height ≤300mm ≤300mm ≤300mm
Neck diameter 28mm-38mm 28mm-38mm 28mm-38mm
Mold Cavity 2 4 6
Mold thickness 240mm 240mm 240mm
Mold volume 260*240*370mm 510*240*360mm 640*240*360mm
Main machine power Rated power 25kw 49kw 73kw
Usage power 6.5kw 13kw 25kw
Air system HP air compressor 1.4m3/min 3.0MPa 2.0m3/min 3.0MPa 6.0m3/min 3.0MPa
LP air compressor 1.0m3/min 1.0MPa 1.6m3/min 1.0MPa 2.0m3/min 1.0MPa
Air tank 0.6m3 3.0MPa 0.6m3 3.0MPa 1.0m3 3.0MPa
Air dryer 1.0m3/min 3.0MPa 2.0m3/min 3.0MPa 6.0m3/min 3.0MPa
Cooling water system Water chiller 3HP 3HP 3HP
Main blowing machine Size(L*W*H) 1900*1280*1930mm 1900*1860*1930mm 4100*2400*1930mm
Weight 2000kg 3600kg 4200kg
Preform unscrambler Size(L*W*H) 2000*950*2480mm 2000*950*2480mm 2000*950*2480mm
Weight 250kg 250kg 250kg

water bottle making machine

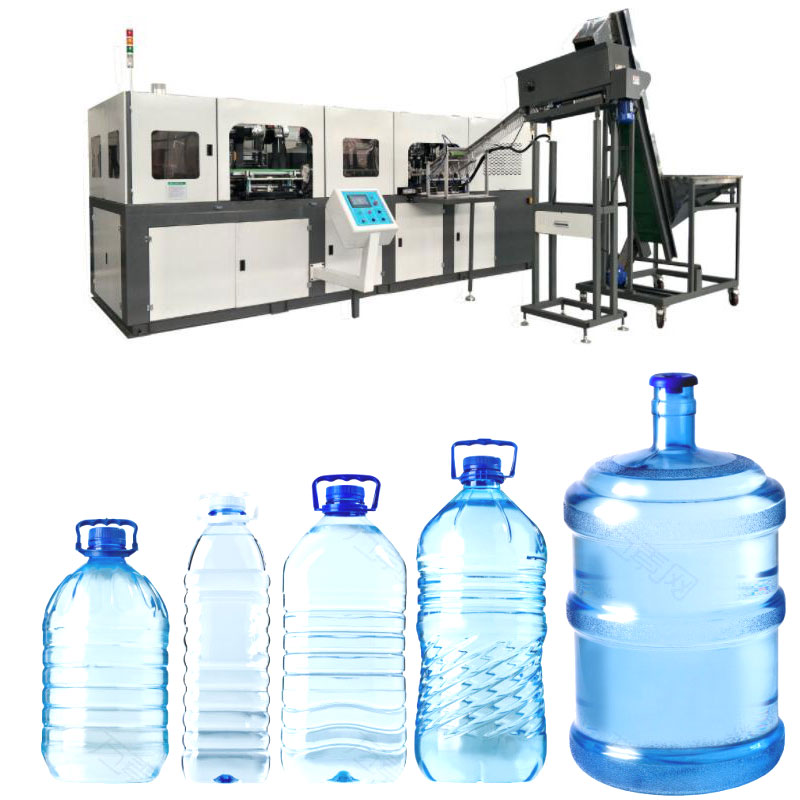

Brief introduction of water bottle blow molding machine:

1.HJ-A2 is the fastest liner blow molding machine in mainland of China by now. Its baking tunnel is separated from the blow station so that time for mold opening is shortened with a result of speedy blowing and high output, damage to machine is lessened so as to keep reliable performance and prolong service life, as well as machine runs more smoothly and steadily.

2.HJ-A2 automatic stretch blow molding machine is equipped with patented preform loading system, which consists of two manipulators: rectilineal manipulator and overturning manipulator. The rectilineal manipulator moves preform with neck up to the preform holder, after heating, the overturning manipulator grips heated preform and overturn 180 put preform to blow station with neck down. After stretching and blowing, the bottle is taken off by overturning manipulator. The specially designed preform loading & bottle discharging system avoid possible damage to preform & bottle during transportation.

3.HJ-A2 is controlled by PLC. The whole process from preform feeding to bottle discharging is completed automatically with advantages of labor saving and no pollution.

4.HJ-A2 consists of three main parts: preform loading system, Heater channel & blow station.

After service:

1. We send the engineers to help installing, commissioning and training, the engineers start from our factory area.

2. We supply below necessary documents with the machine:

a. Machine layout

b. Electricity diagram

c. Machine certificate

d. General manual book/maintenance book

3. After one year guarantee, the seller provides payable spare parts and technician’s VISITING maintenance service.

plastic bottle making machine



1.Q:Are you a factory or trading company? Where is your factory located?

A: We are a factory,it is located in Dongwu,Ningbo city, Zhejiang Province, China. It's near Ningbo & Shanghai port.


2.Q:How about quality control in your factory?

A: “ Quality is the key point, do what customers needs”


3. Q.I have an idea for a new product, but don't know if it can be manufactured.

Can you help?

A. Yes! We are always happy to work with  customers to evaluate the technical

feasibility of your idea or design and we can advise on materials, tooling and

likely set-up costs.


4.Q.What is your payment and delivery time?

A:"The payment is 30% by T/T as down payment,70% by T/T before shipment,and the delivery time is within 45 working
