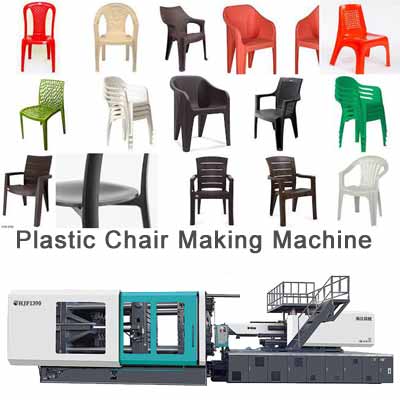

Plastic Chair Making machine

  • Plastic chair Making Machine
    Clamping force:1000t
    Shot Weight:4765 grams
    Plastic material: PP,PC,ABS,PE et.
    HAIJIANG MACHINERY situated in Ningbo Yinzhou Investment & Innovation Center, cover land of more than 50,000M2.
    It was established in 1992 and now employs a staff of more than 100 people. with CE and ISO9001.have more 37 agents in the world. Offer in time after service

Plastic Chair Making machine

Adjustment Unit
Automatic Mold Height Adjustment Saves the time and cost during the mold changing.
Clamping Unit
The plates were designed using FEM software,ensuring a stable and rigid clamping system.Five point inward moving double toggle system ensures high rigidity and precision for mold clamping and also reducing stress and Strain effects.
Hydraulic Unit
The hydraulic system using the world famous pump and control valve can control the machine running precisely,ensuring the precision,reliability and durability of whole machine.
Injection Unit
Dual-pillar supporting and dual-cylinder injection balance devices ensure the stress on screw balanced during injection.
Specific screw and barrel designs are available for processing different material requirements.
Electronically Controlled Unit
1.CPU controller and display are independent and reliable.
2.A larger color LCD screen enhances clear display and supports multi-language compatibility.
3.The control system also supports remote monitor.In the event of a control problems,the machine can be connected to internet through a special interface.Inject service can realize remote fault diagnosis and maintenance.
4.A screen saver function extends the LCD life.
5.Ultra bright LED is provided for input and output point inspection.Proving convenient indication of the machine’s operation and machine service
6.A data hardware lock is provided to prevent unauthorized people from effecting the machines performance.
7.Closed Loop PID barrel temperature control.
8.Dust and waterproof control cabinets provide a neat and tidy enclosure all electrical control components.

Screw Type A B C D
Screw Diameter Mm 95 105 115 125
Screw L/D Ration L/D 23 22 20 18.6
Shot Size(Theoretical) cm3 3613 4413 5294 6255
Injection Weight(PS) g 3251 3972 4765 5629
Injection Rate g/s 580 708 850 930
Injection Pressure MPa 210 162 133 120
Screw Speed rpm 115
Clamping Force KN 10000
Opening stroke Mm 1100
Space Between Tie Bars mm 1120*1020
Max.Mold Height mm 1100
Min.Mold Height mm 500
Ejector Stroke mm 350
Ejector Tonnage KN 200
Max.Pump Pressure MPa 16
Pump Motor Power KW 45+45
Heater power KW 58
Machine Dimension(L*W*H) M 12*2.8*3.14
Machine weight T 45
Oil Tank Capacity L 1800
Plastic Chair Making Machine
