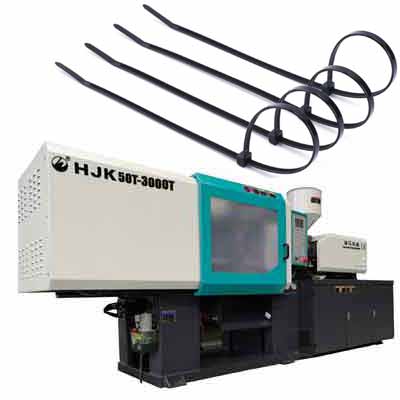

China haijiang Nylon cable tie Injection Molding Machine
Main Characteristic:

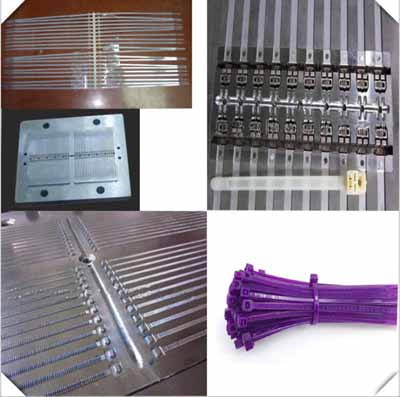

1.The optimized toggle clamping design for the Nylon Ribbon mould, will reduce the opening stroke and shorten the time of opening & clamping
2.The special design of long platen is used for the Nylon Ribbon mould
3.Strengthen parts such as mould plate, frame, toggle, make the whole machine more rigid and more durable.
4.Special design screw & barrel for PA, makes good effect of plasticizing and melting speed, and this design can exhaust the water and air, ensure the quality of the machine.
5.Upgraded hydraulic system, ensures the injection speed faster, and shortens the cycle time.
Main features:
Double-cylinder balanced injection system;
Multi-stage pressure &speed injection;
Back pressure adjustment device;
Low pressure mold protection;
Single hydraulic core pulling and inserting;
Multiple hydraulic ejector knock-out;
Mechanical, electrical safety device;
Auto lubrication system;
Hydraulic pressure full proportional control;
Standard accessory;
Anti-pad
Spare parts;
Tool box;
Instruction manuel of machines
Optional Accessory:
Air ejector;
Magnetic stand;
Mold clamps;
Chiller;
Mould temperature controller;
Autoloader;
Hopper dryer
SPECIFICATION |
HJF290 |
|||
|
A |
B |
C |
|
Screw Diameter |
Mm |
55 |
60 |
65 |
Screw L/D Ration |
L/D |
23.1 |
21 |
19.3 |
Shot Size(Theoretical) |
cm3 |
712 |
847 |
994.9 |
Injection Weight(PS) |
g |
648 |
779.9 |
905 |
Injection Rate |
g/s |
210 |
240 |
270 |
Injection Pressure |
MPa |
205 |
168 |
143 |
Screw Speed |
rpm |
0~180 |
||
Clamp tonnage |
KN |
2900 |
||
Opening stroke |
Mm |
585 |
||
Space Between Tie Bars |
mm |
600*600 |
||
Max.Mold Height |
mm |
600 |
||
Min.Mold Height |
mm |
220 |
||
Ejector Stroke |
mm |
150 |
||
Ejector Tonnage |
KN |
75 |
||
Max.Pump Pressure |
MPa |
16 |
||
Pump Motor Power |
KW |
30 |
||
Heater power |
KW |
15 |
||
Machine Dimension(L*W*H) |
M |
6.0*1.6*2.1 |
||
Machine weight |
T |
8.5 |
||
Oil Tank Capacity |
L |
570 |
