Main features:
Double-cylinder balanced injection system;
Multi-stage pressure &speed injection;
Back pressure adjustment device;
Low pressure mold protection;
Single hydraulic core pulling and inserting;
Multiple hydraulic ejector knock-out;
Mechanical, electrical safety device;
Auto lubrication system;
Hydraulic pressure full proportional control;
Computer control system;
Molding data memory system;
Automatic mould adjust function.
Energy saving with variable pump;
Five-point inward moving toggle system ensure high rigidty and precision for mold clamping and also reducing stress and stain effects;
Oil pipelines are positioned for aesthetic appearance and easy for maintenance;
The moving platen is fitted with adjustable slide support system to improve platen parallelism and provide better tie bar and mould protection and lengthen the working lifetime;
Nozzle alignment is provided using a simple mechanism with fine adjustment for accurate centering.
SPECIFICATION |

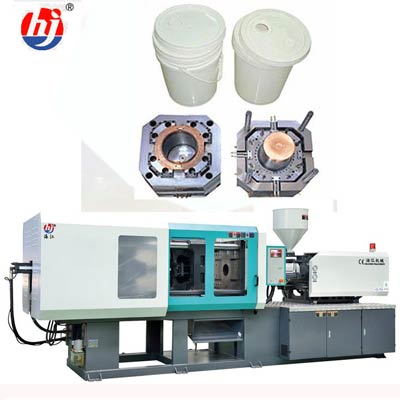

HJF360MT
|
||||
A
|
B
|
C
|
D
|
||
INJECTION UNIT
|
|||||
Screw Diameter
|
mm
|
60
|
65
|
70
|
75
|
Screw L/D Ration
|
L/D
|
22.6
|
21.2
|
19.4
|
18.5
|
Shot Size(Theoretical)
|
cm3
|
960
|
1128
|
1306
|
1480
|
Injection Weight(PS)
|
g
|
873
|
1026
|
1180
|
1346
|
Injection Rate
|
g/s
|
239
|
275
|
328
|
420
|
Injection Pressure
|
MPa
|
213
|
183
|
160
|
146
|
Screw Speed
|
rpm
|
0-180
|
|||
CLAMPING UNIT
|
|||||
Clamp tonnage
|
KN
|
3600
|
|||
Opening stroke
|
mm
|
670
|
|||
Space Between Tie Bars
|
mm
|
660*660
|
|||
Max.Mold Height
|
mm
|
670
|
|||
Min.Mold Height
|
mm
|
240
|
|||
Ejector Stroke
|
mm
|
160
|
|||
Ejector Tonnage
|
KN
|
62
|
|||
OTHERS
|
|||||
Max.Pump Pressure
|
MPa
|
16
|
|||
Pump Motor Power
|
KW
|
37
|
|||
Heater Power
|
KW
|
17.25
|
|||
Machine Dimension(L*W*H)
|
m
|
6.3*1.9*2.4
|
|||
Machine Weight
|
t
|
12.5
|
|||
Oil Tank Capacity
|
L
|
620
|
